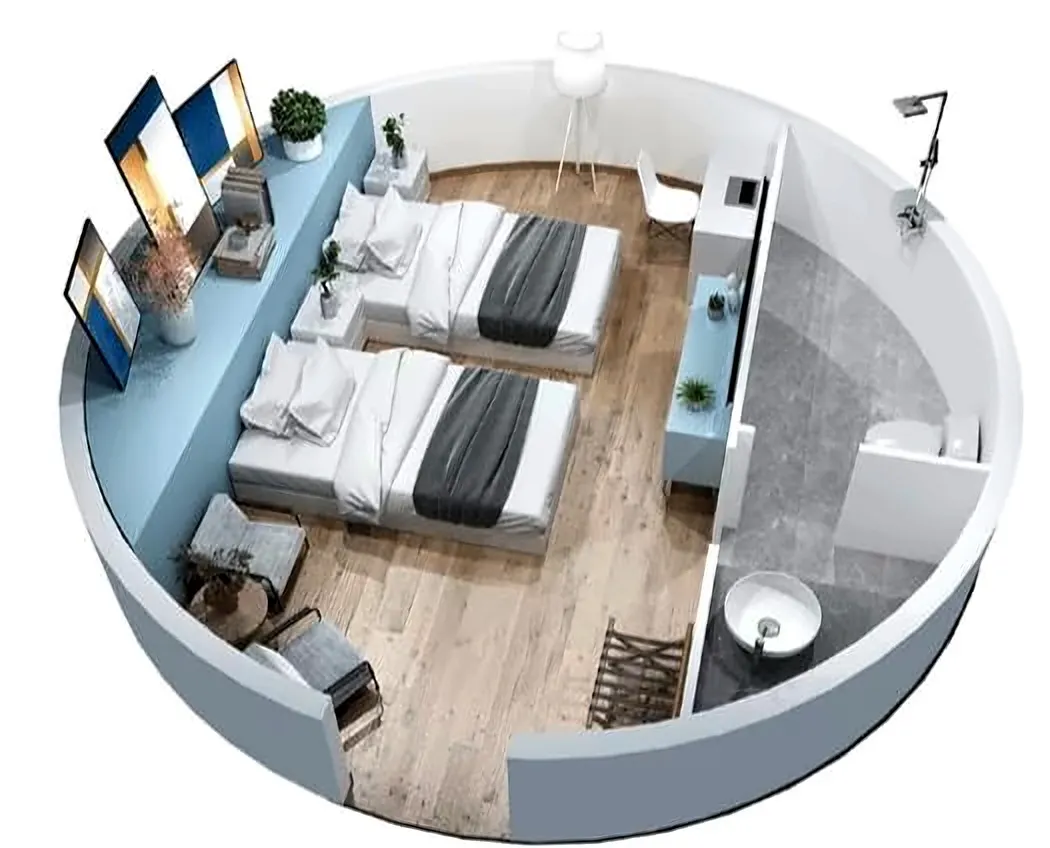

28 m² Dome
- Shape
- Round dome
- Doors / windows
- 1 door / 2–3 windows
- Dimensions
- 5.59 × 5.59 × 3.3 m (manufacturer reference)
- Best for
- Twin guest room, glamping pod, or staff unit
Dome Series
EPS Dome House — Vaultwerk Dome Series
Engineered EPS modular dome houses for glamping, resort, and hospitality projects. Solid 18 cm graphite-EPS modules, connectable layouts from 28 to 44 m², shipped in 40HQ containers — quoted by scope, not by guesswork.
Engineering at a glance
| Specification | Value | Source / caveat |
|---|---|---|
| Wall / roof module | 18 cm solid graphite-EPS module, interlocking joinery | Product manual module thickness |
| EPS core conductivity | λ = 0.032 W/(m·K) | Henan Yongsheng report 202201000206 (GB test) |
| EPS core R-value | Core RSI 5.6 ≈ US R-32 (core material, not whole-assembly) | Derived from λ at 18 cm; installed assembly R-value is project-specific |
| Fire classification | B1 under GB 8624 (Chinese standard) | Not equivalent to EN 13501-1 or ASTM E84 — destination test required |
| Connection module | 1150 mm connection module; Dome Series units connect door-to-door | Manufacturer engineering data; node design reviewed per project |
| MOQ | Minimum order quantity = 1 set, EXW quote baseline | Manufacturer commercial terms (product-facts §0.16) |
| Wind | 12-class typhoon reference | Manufacturer reference condition — local engineer signs off per site |
| Seismic | 8-class arch-structure seismic design rationale | Design rationale, not a magnitude test report — site-specific review required |
| Assembly | 2-hour module locking reference | Product manual reference; site preparation and foundation are separate |
| Lifespan (layered) | EPS core 30 y · mortar/waterproofing 20–30 y · coating 3–5 y recoat · hardware 20–30 y | Layered service life (product-facts §0.16 F17), not a single 50-year claim |
| Container reference | 2.5–6 sets per 40HQ (model-dependent) | Per-layout loading confirmed at quote stage, not published per model |
Dome Series floor plans & models
Four standard layouts. Each connects door-to-door with the others for linked suites and clusters.
33 m² Dome
- Shape
- Dome
- Doors / windows
- 1 door / 2–3 windows
- Dimensions
- 6.74 × 5.59 × 3.3 m (manufacturer reference)
- Best for
- Guest suite with seating zone
40 m² Façade Dome
- Shape
- Façade model with full-height glazing
- Doors / windows
- 1 door / 5 windows
- Dimensions
- 5.59 × 7.89 × 3.3 m (manufacturer reference)
- Best for
- Scenic suite or resort lodge with panoramic glazing
44 m² Façade Dome
- Shape
- Façade model with eaves
- Doors / windows
- 1 door / 2–3 windows
- Dimensions
- 7.89 × 5.67 × 3.3 m (manufacturer reference)
- Best for
- Resort lodge or premium guest unit
Connectable, modular dome layouts
Dome Series units connect door-to-door on a 1150 mm connection module — single units, linked family suites, or multi-dome resort clusters. Connection-node design is reviewed per project. Dome Series connects only with Dome Series; Cabin Series and A-Series do not physically connect to domes.
EPS module engineering
A solid 18 cm graphite-EPS wall and roof module with interlocking joinery — measured λ = 0.032 W/(m·K), giving a core RSI 5.6 (≈ US R-32) before assembly detailing. This is the structural and thermal core; installed assembly performance is project-specific.
What a quote includes
We quote by scope so offers stay comparable. No public price is published — share your layout, unit count, and destination for a scoped figure.
See the lifecycle cost comparison → · For resort developers → · Full EPS dome house guide →
Shell-only
EPS modules, structural joinery + hardware, mesh, mortar, coating, factory docs.
You still confirm: Foundation, MEP, glazing labour, interiors, assembly crew, destination certification.
Ready-to-move-in
Shell scope + basic interior finishes, basic MEP rough-in, glazing per drawing.
You still confirm: Foundation, assembly labour, HVAC commissioning, certification applications.
Turnkey
Ready scope + on-site assembly with factory supervisory support.
You still confirm: Local general contracting + certification via a buyer-engaged local partner, separately quoted.
Quote Scope
Not ready for a full quote yet?
Get the Quote Scope Explainer first — compare shell-only, ready-to-move-in, and turnkey boundaries so you can frame your project before requesting a scoped quote.
Certifications & evidence
-
SGS (RoHS)
SGS RoHS / heavy-metal material-safety report on file — material-safety evidence only, not a fire or structural certification.
-
GB 8624 B1 (fire)
B1 fire classification under the Chinese standard GB 8624. This is a China fire classification and is not EN 13501-1 or a CE fire class.
-
CE / EU DoC
CE / EU Declaration of Conformity is pursued per project; we share source documents during inquiry review before any market-specific claim.
-
ASTM E84 / CSA A277 / AS 3959
Destination certifications (US / Canada / Australia bushfire) can be pursued per project; they are not currently held.
Shipping & logistics
Modules ship flat-packed in 40HQ containers — a model-dependent reference of 2.5–6 sets per container. Minimum order is 1 set on an EXW baseline. Exact per-layout loading and freight are confirmed at quote stage.
Dome Series FAQ
- How much does an EPS dome house cost?
- Pricing is quoted per project because freight, site work, interior scope, and certification path vary by destination. Tell us the layout, unit count, and target market and we return a scoped quote — shell-only, ready-to-move-in, or turnkey.
- What is the minimum order quantity?
- Minimum order is 1 set on an EXW baseline. Single units, small B&B batches, and 100+ resort orders are all quotable through the same RFQ.

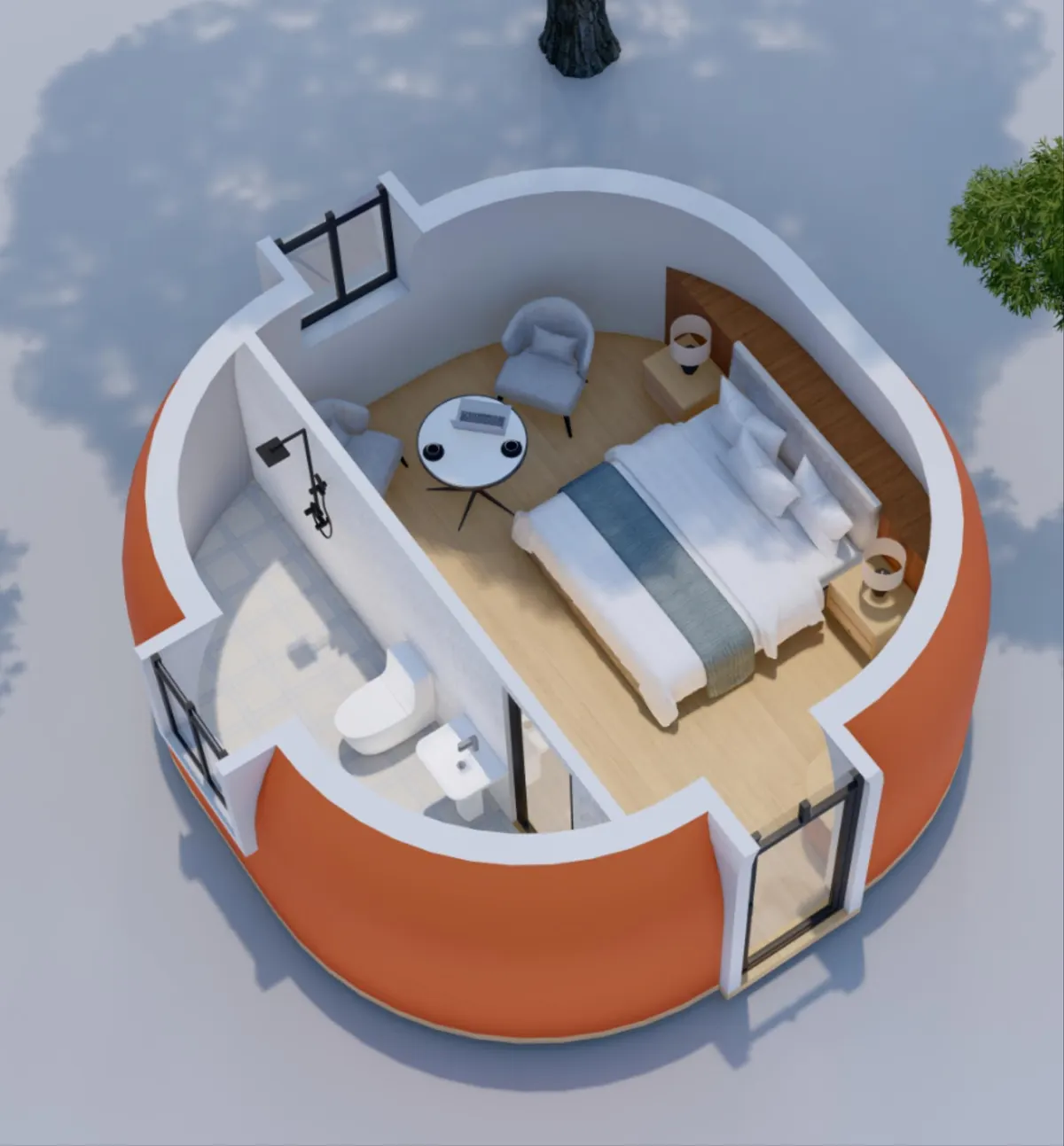

- Can a dome include a bathroom?
- Yes. Interior partitions for a bathroom are part of the fit-out scope; the layout and plumbing rough-in are confirmed against your destination utility connections at quote stage.
- Can different Dome Series sizes connect into one building?
- Yes — Dome Series layouts connect door-to-door using a 1150 mm connection module, so 28, 33, 40, and 44 m² units can form linked suites and clusters. Connection-node design is reviewed per project. Dome Series connects only with Dome Series; Cabin Series and A-Series do not physically connect to domes.
- What is the fire rating?
- The EPS module is classified B1 under the Chinese standard GB 8624. That is a China fire classification, not EN 13501-1 or a CE fire class; destination fire testing is arranged per market.
- How long does it last?
- Service life is layered: the EPS core and galvanised hardware are long-life (20–30 years+), mortar and waterproofing 20–30 years, and the exterior coating is recoated every 3–5 years. We share the layered basis rather than a single headline number.
- How is it shipped?
- Modules ship in 40HQ containers, with a model-dependent reference of 2.5–6 sets per container. Exact per-layout loading and freight are confirmed at quote stage.
Request a Dome Series quote
Tell us the layout, unit count, and destination market — you'll get a scoped quote and an RFQ checklist within one business day. Dome Series is quoted by scope (shell-only to turnkey), quantity, and shipping terms, not sold at a fixed list price.
See how pricing works →
